Maintenance
2017 ( December 2017 - May 2018) |

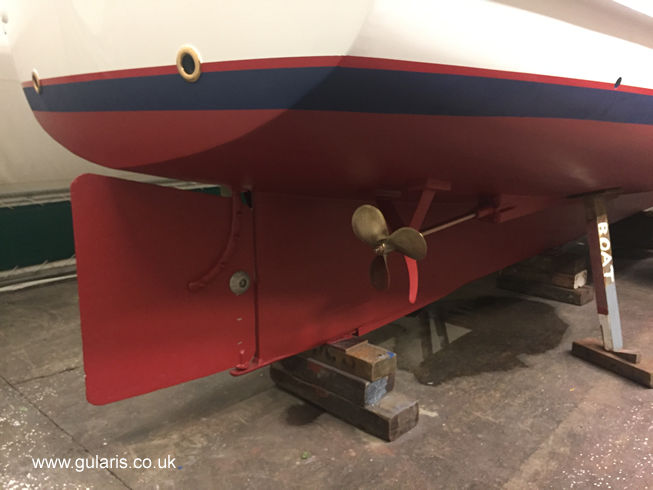

All external paint and varnish sanded and
repainted, old antifouling removed by wet sanding (not nice !)
& re applied, some varnished areas taken back to the wood
to regain colour, long job ! many coats needed to bring back a
nice finish (note: used International schooner as usual but rather
disappointed with some tins just not performing well, also noticed
a big difference in varnish colour when put in clear tubs prior
to application)
A number of top side splines were replaces
and with some excellent asistance from boat builder Joe Irving
at Draughtsman Yachts Barton on Humber a number below the waterline
seams were expertly repaired.

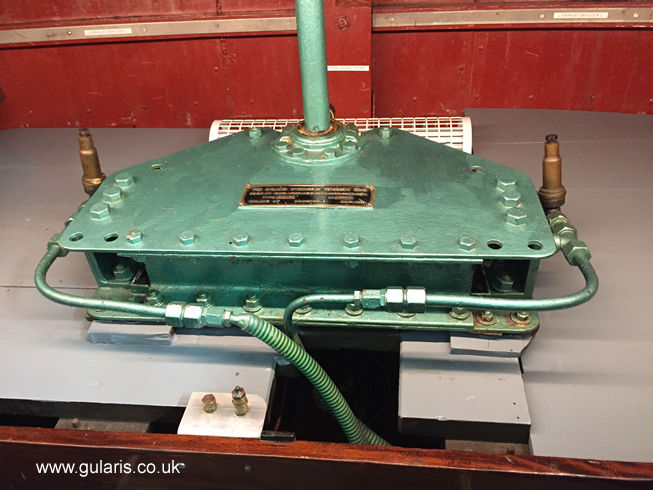

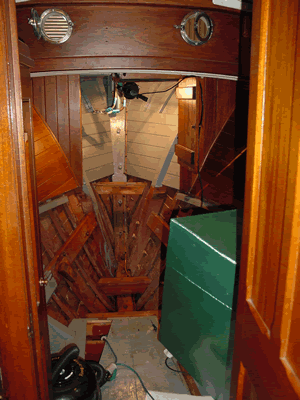

The Aft locker was re-floored around the
Hyland steering gear and finally a decent light was fitted! (again
using Targa Lighting discrete LED aluminium profile) |
|
|
Maintenance
2015 ( December 2015 - May 2016) |

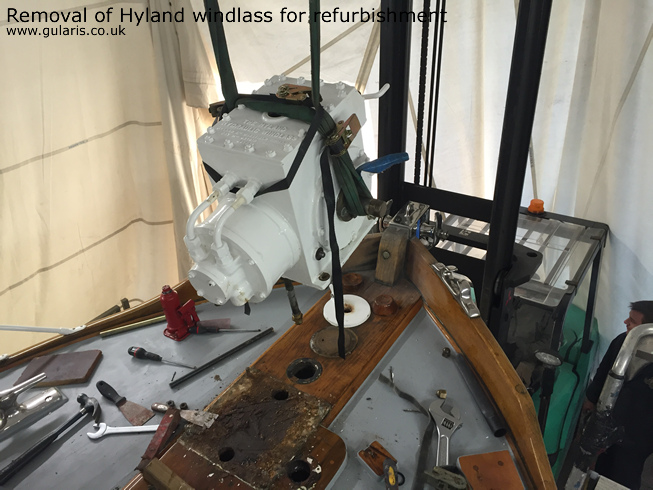

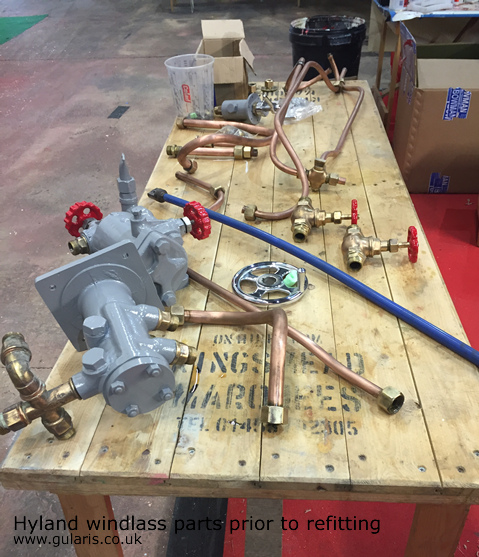

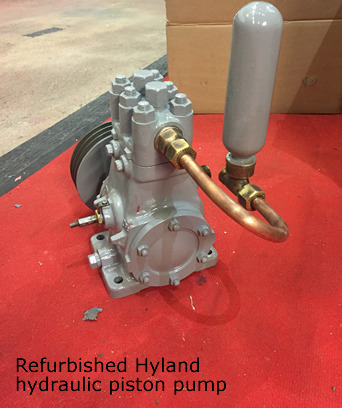

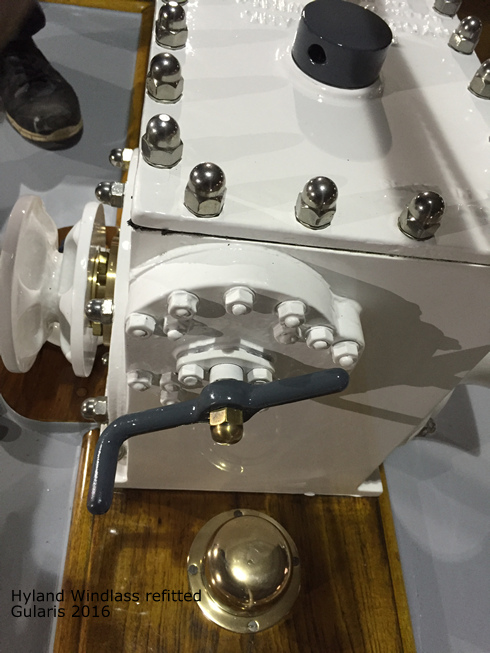

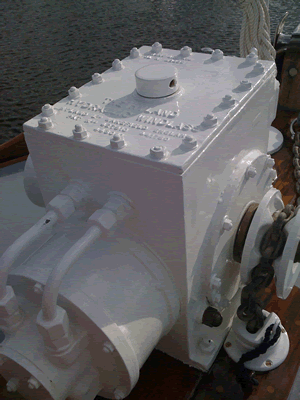

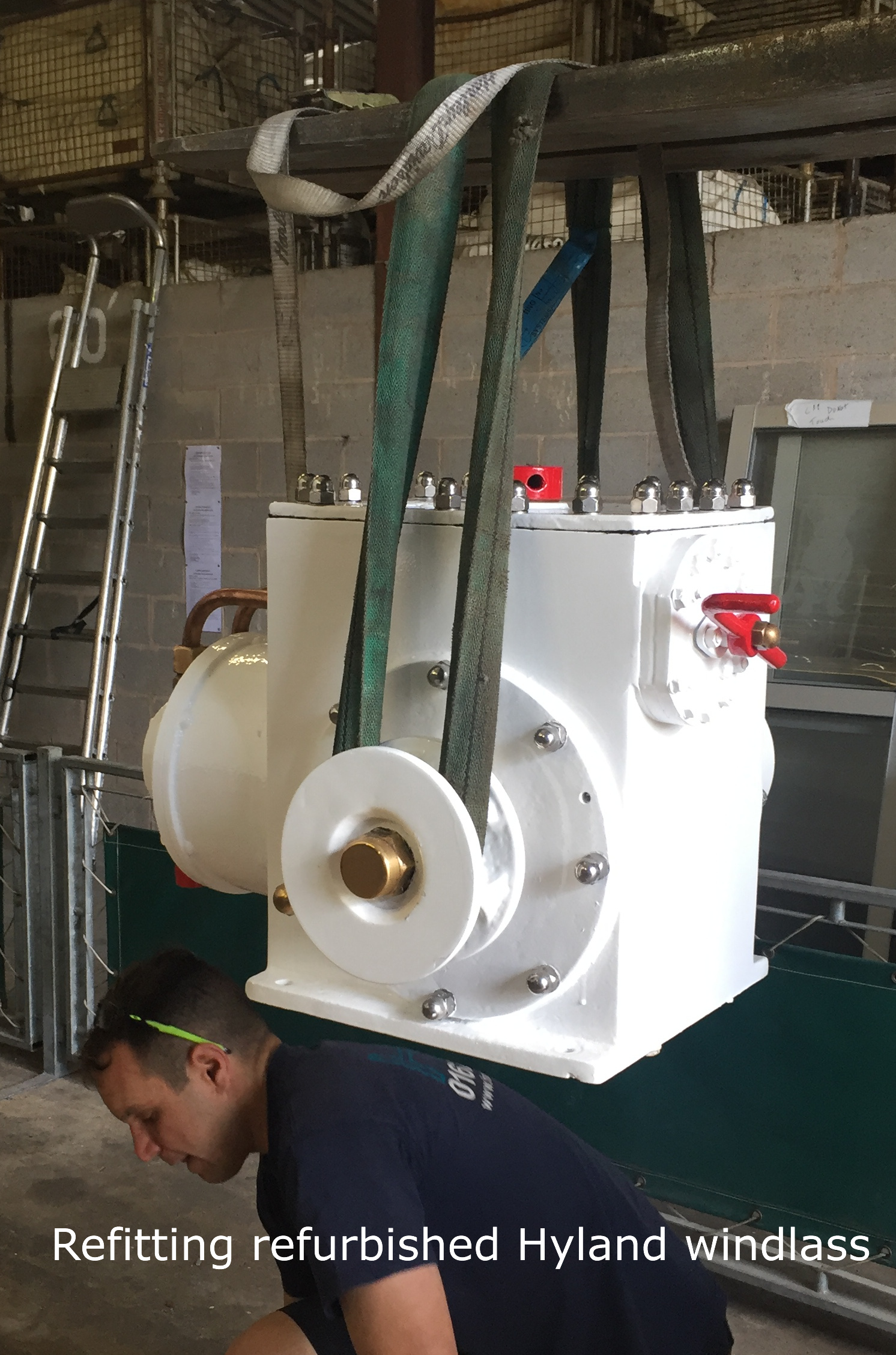

Main projects included complete refurbishment
of the Hyland windless, pump and control valves, Gularis was used
as a test bed for products of Charles Hyland and retains a number
of his patented products so great care was required during the
removal refurbishment and reistallation, I don't think this had
been in working order since the early 70s so we were delighted
to restore this full working order.

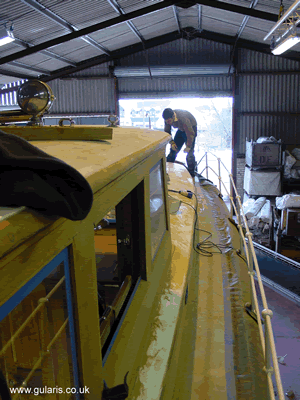

All external paint & varnish work
prepared and repainted.antifouling removed and a coat of Primacon
applied before new antifouling, further wiring modifications,
new section fitted to top of stem post (after long overdue removal
of stemhead fitting.)
Internal work included galley roof repainting
as saloon & wheelhouse - a very time consuming job! and guaranteed
to give you a stiff neck.. Some handrail stanchions removed and
re-fastened, engines
serviced, main fuel tanks cleaned, most lighting now converted
to LED (P.S. an exellent product available from 'Targa Lighiting'
basicly a small section of extruded aluminium profile that you
can cut to the required length, fit 12V LED tape inside cut to
length (warm white) and slide in a neat frosted cover
so that you don't see the dots of light from the tape, works well
in engine room, galley under shelving, and awning etc)
Bilges cleaned and repainted, a few topside
splines repaired, awning replaced. |
|
Maintenance
2013 ( December 2013 - May 2014) |
Work
completed winter 13/14 included all external paint work, saloon
roof (inside) was repainted and as with the wheelhouse roof considerable
time was required in preparation of the match board roof, other
saloon paintwork was the deck undersides and an area that had
been painted at some point, was restored to its original varnished
finish.
The
topside splines repaired in 2011/12 remained in excellent condition
so a number of additional sections received more of the same attention.
The
Isotherm cold box unfortunately had to be replaced and the old
bait locker that accommodated it modified, also electrically -
alarm strobe lights replaced with units as used in unmarked police
car grills these are very bright, durable and a lot more noticeable
than a basic bell box strobe. + Lighting in engine room improved.+
New mast head antenna fitted + mast completely rewired & wiring
back to wheelhouse panel replaced (using Bulgin connectors including
50 ohm coax on deck connections)
Gularis's
9' tender also soaked up quite a bit of time with repairs &
repaint.

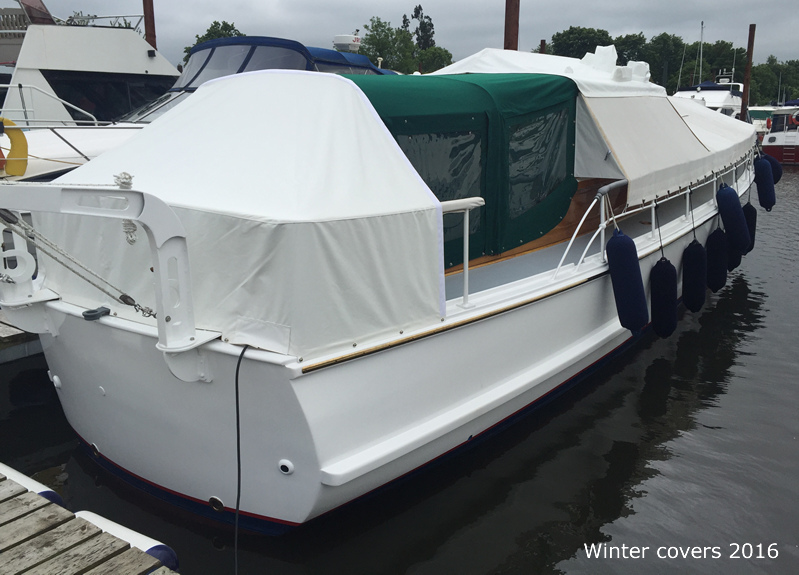

All
winter covers replaced with a better (fire retardent) fabric.
A
new arrangement for the fresh water tank breather was fitted,
engines serviced, fuel tanks drained.
|
Maintenance
2013 (Afloat - ashore maintenance planned December 2013 - May 2014) |
Work
done afloat since May 2012 has included fitting a alarm system,
after a fair amount of research into the various systems available
a British made 'Monitor' (Nautilarm) unit was chosen. The system
as well as its alarm functions is able to provide information
by text such as position, bilge levels, battery bank monitoring,
shore power status, and the ability to switch a number of circuits
remotely, a hands free phone is also included. Fitting took quite
a while mostly due to the difficulties of discreet installation
in a 1930s boat, however the system has performed perfectly and
the back up telephone support from the dealer (Myerchin UK 01305
251971 ) was first class. |
|
Maintenance 2011 (December 2011 - May 2012) |
This

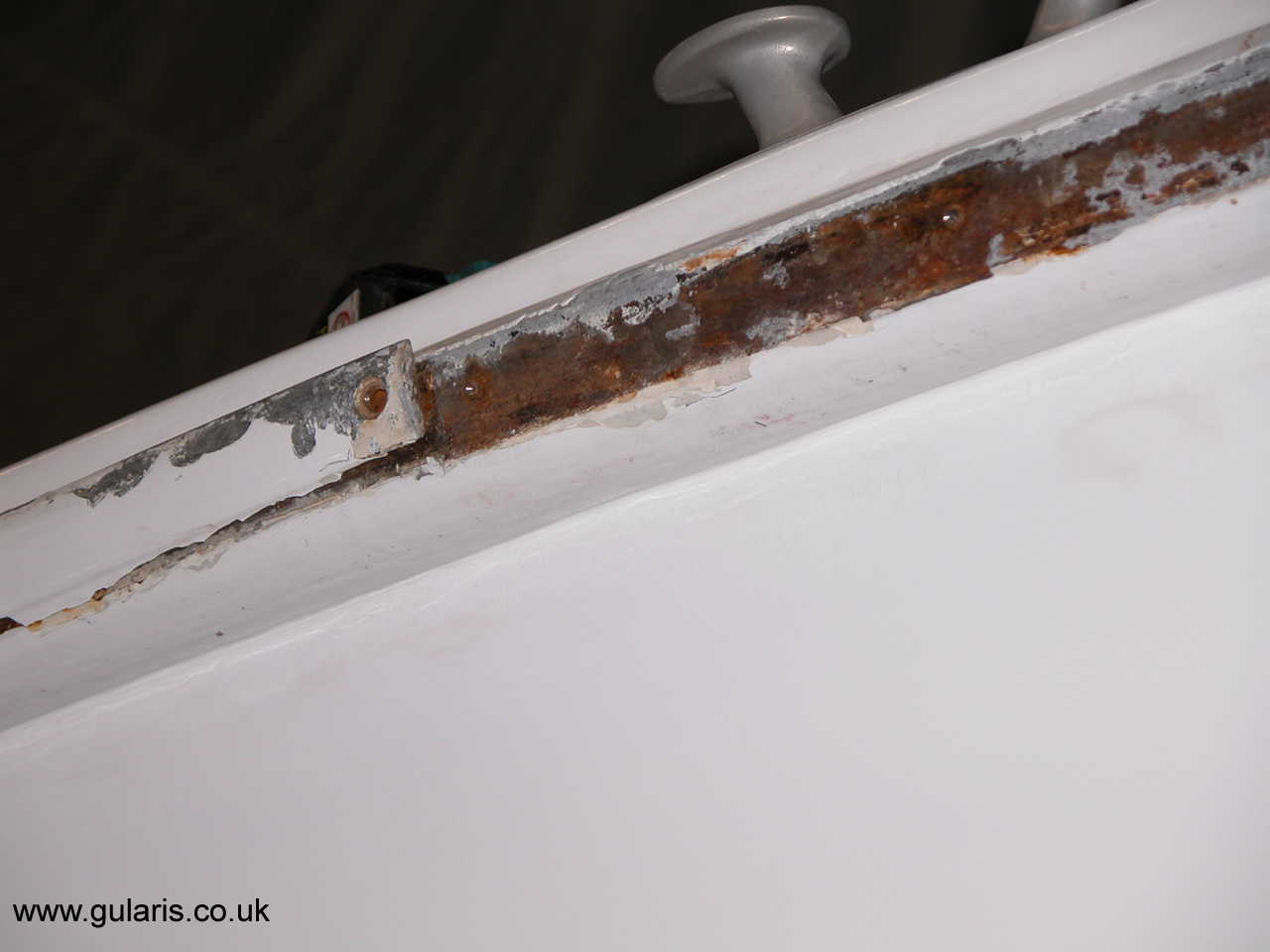

winters work included replacement of galvanized rubbing strips
(loss of galvanizing was making it very difficult to keep rust
at bay!) with brass convex, refurbishment of the Francis Searchlights
and other re-chroming, all exterior paint & varnish work,
internal work included wheelhouse match board roof refurbishment
and the heads had a complete re paint. Galley taps replaced as
was the water heater. External work also included the replacement
of a number of topside splines (using west system products to
reset splines) Final section of rewiring completed. |
|
|
|
|
|

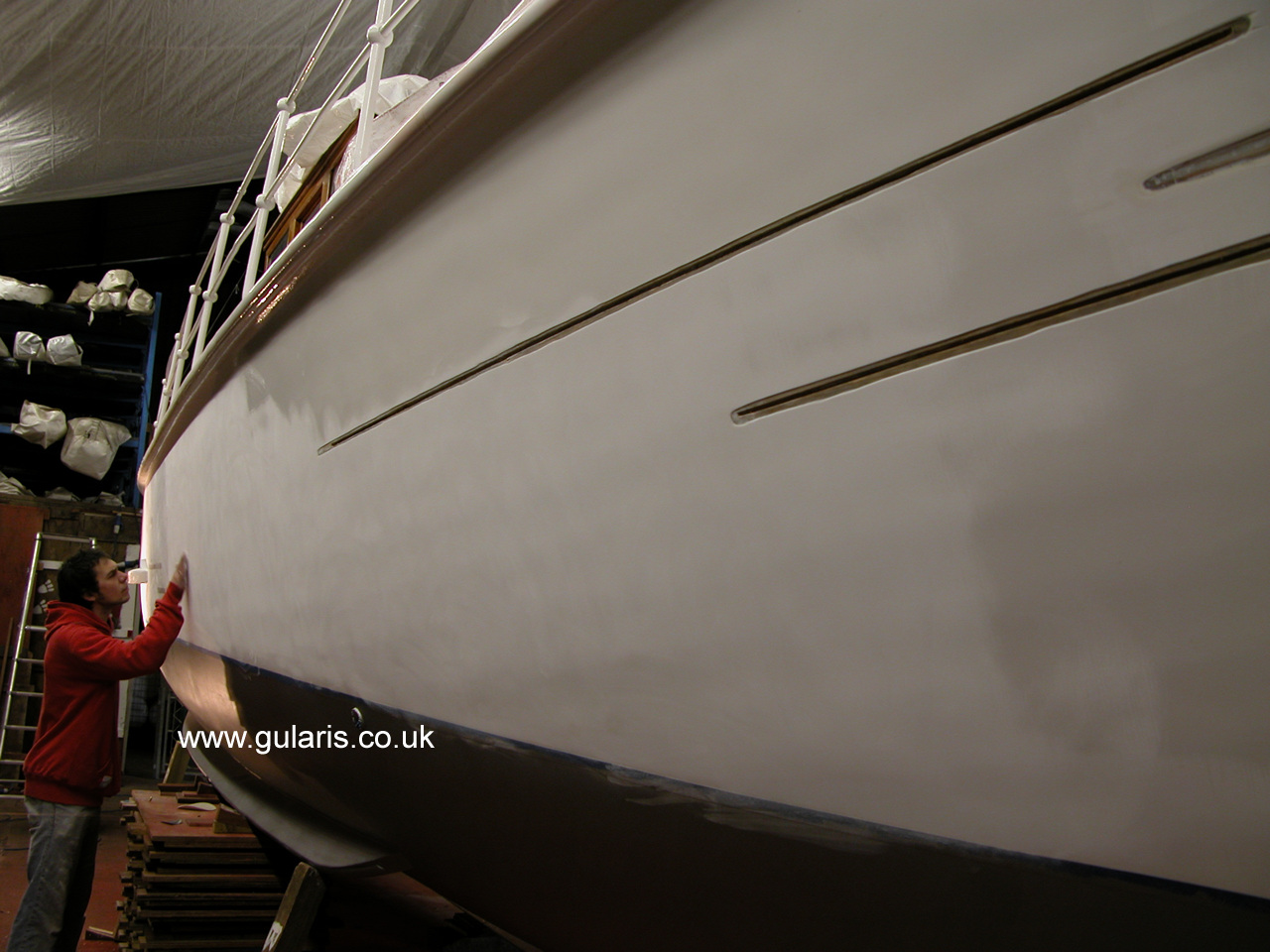

Topside
spline repairs
|

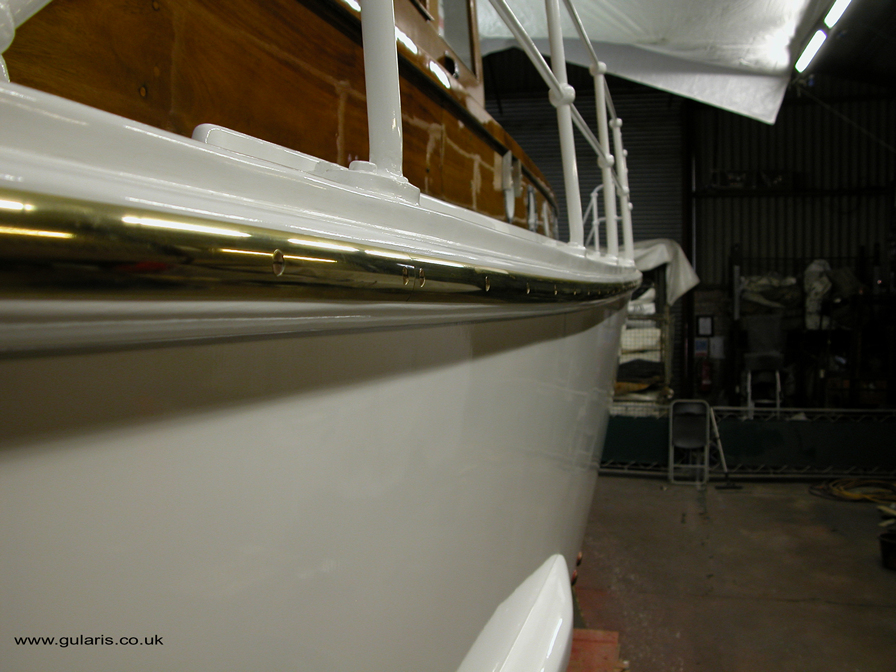

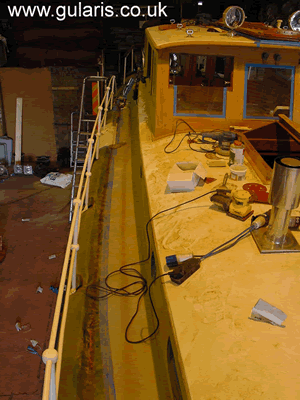

Galvanised
Rubbing Strip Replacement
|
|
|
|
|
|
|

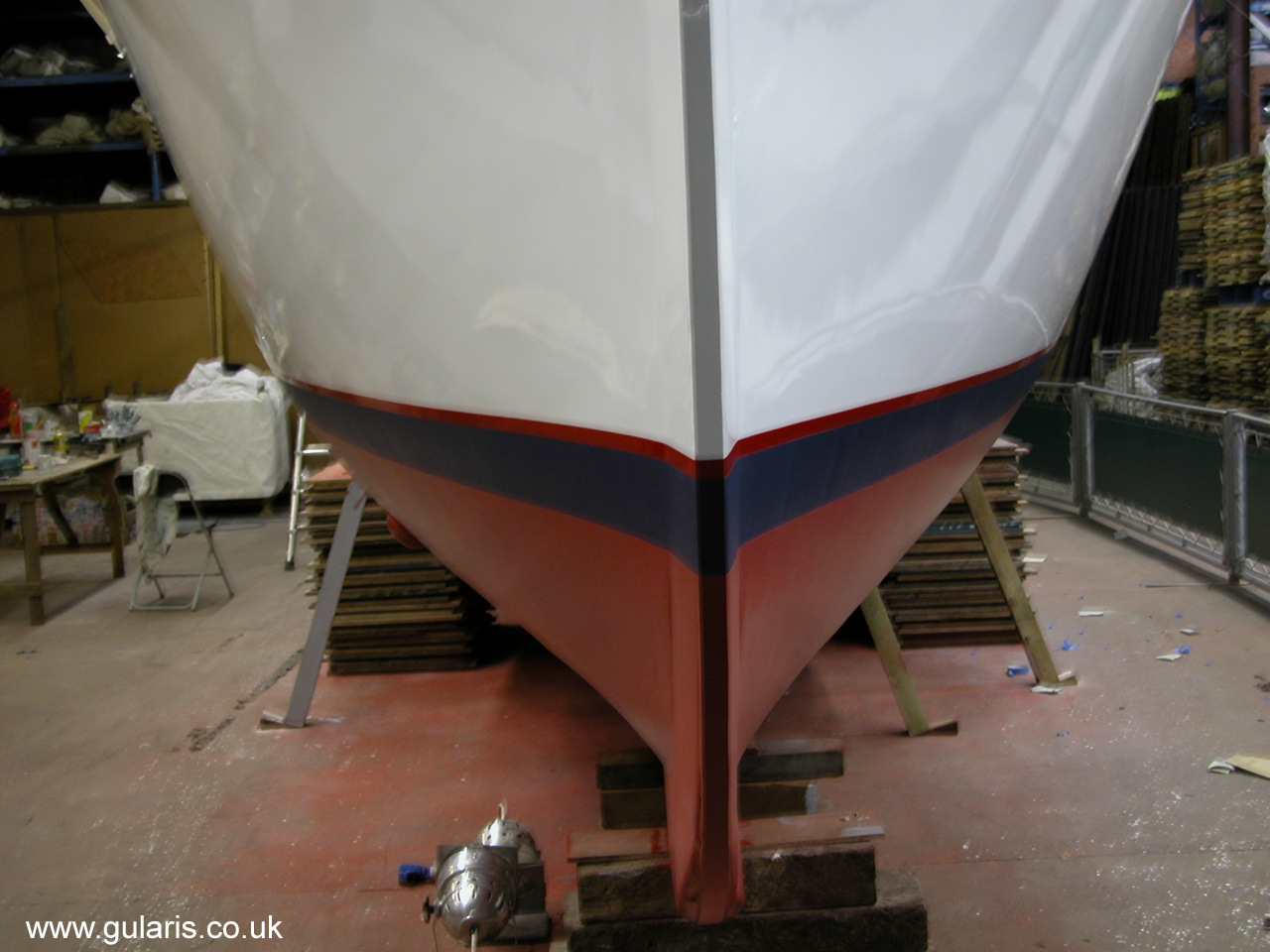

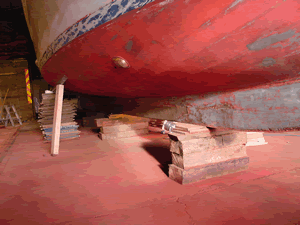

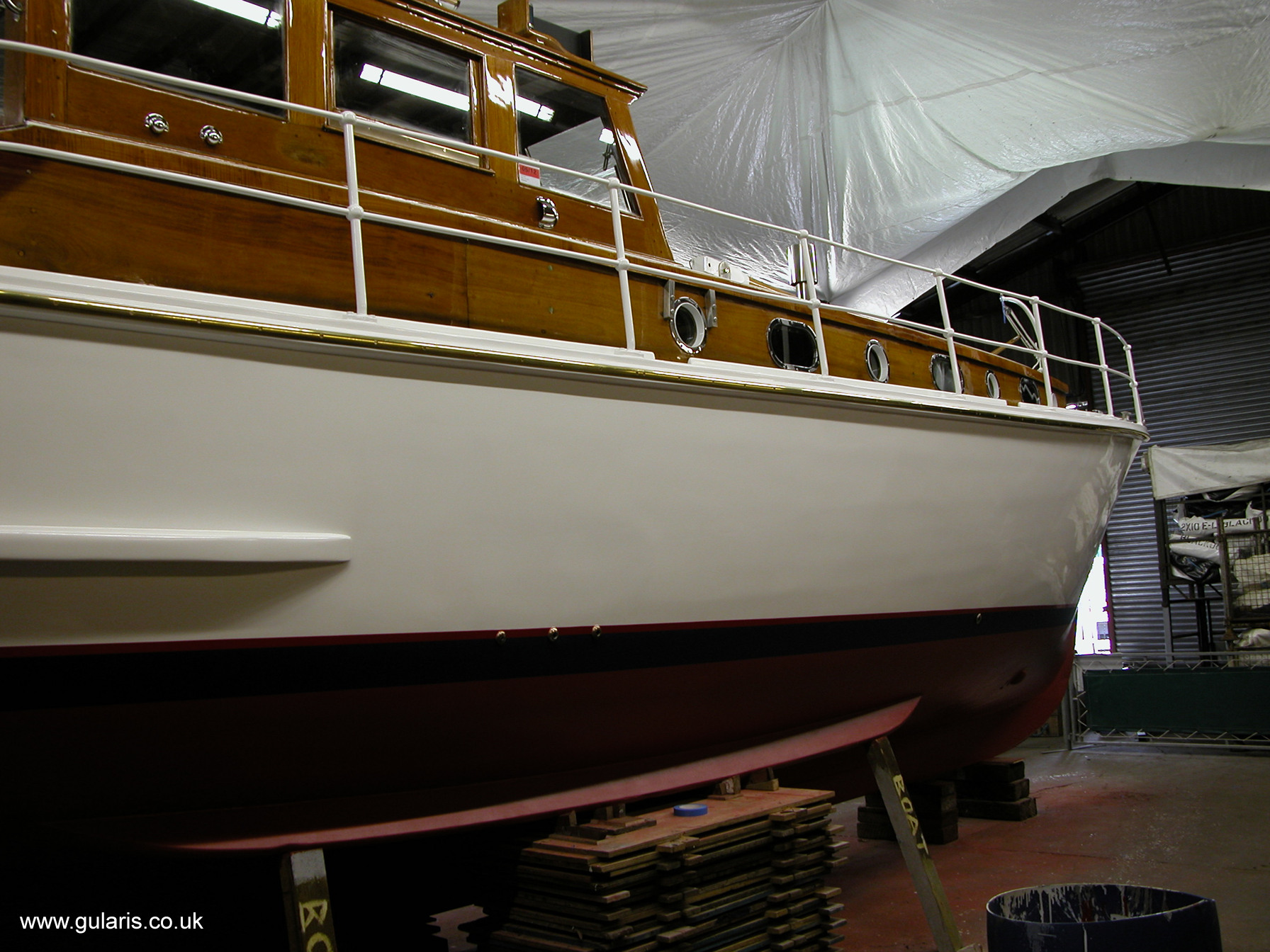

Hull
work finally completed
|

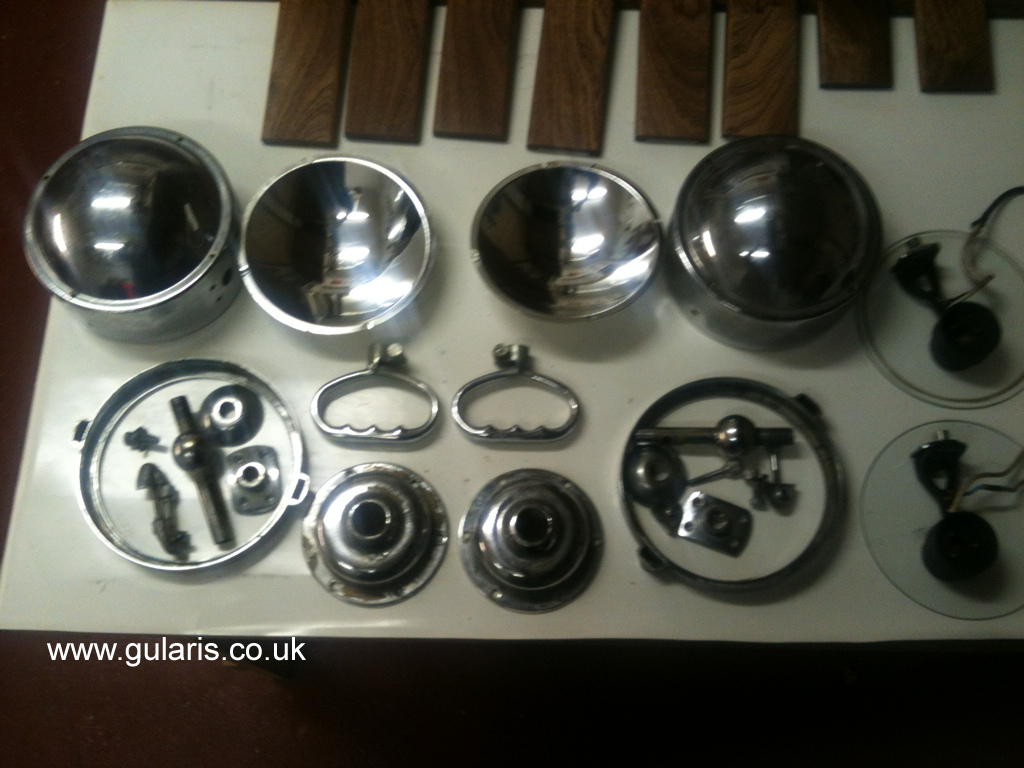

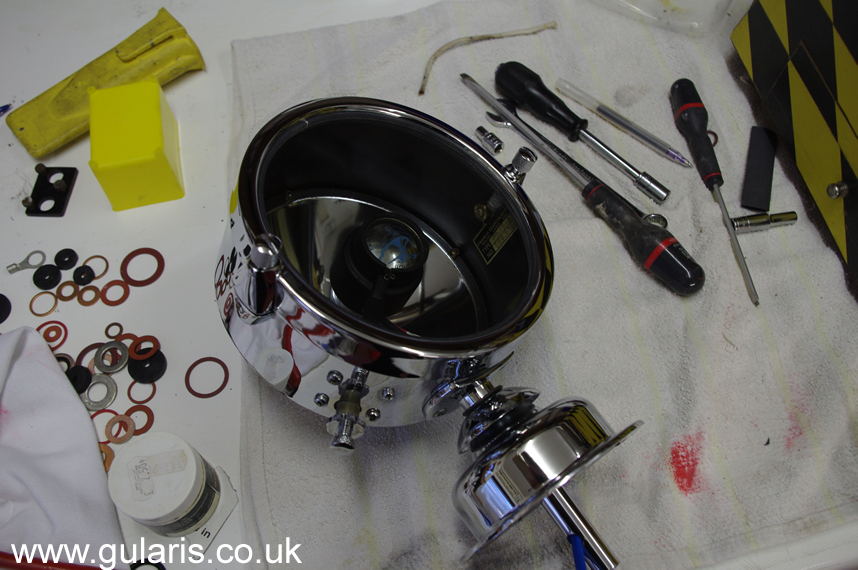

Refurbishment
of the Francis Searchlights
|

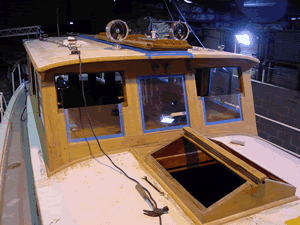

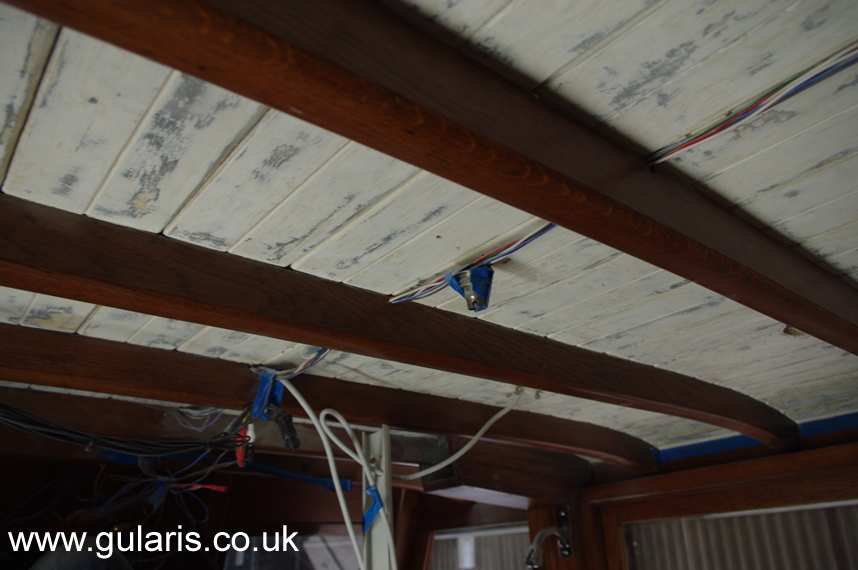

Wheelhouse
roof refurbishment
|
|
|
Maintenance 2009 (January 2009 - May 2010) |
Winter

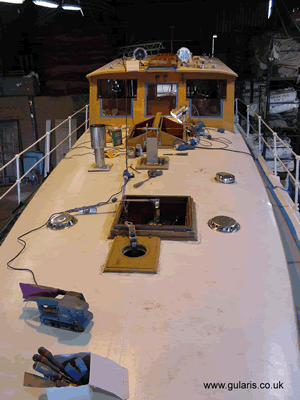

2009 / 2010 maintenance included all external paintwork / extended
winter cover made / deadwood keel all old paint removed / Re-chromed

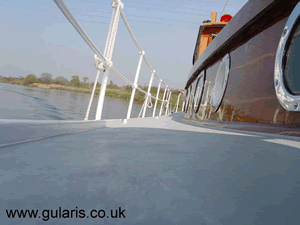

parts / lighting & electrical work / aft deck refurbished

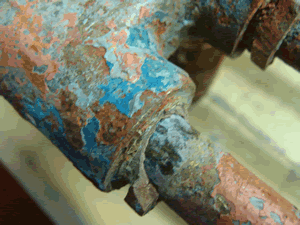

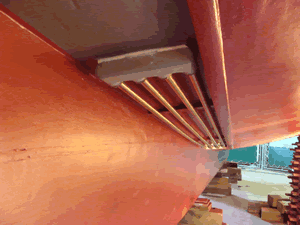

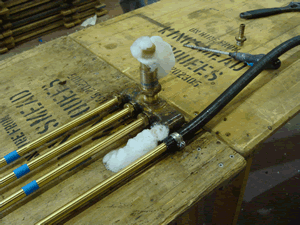

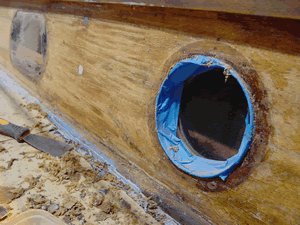

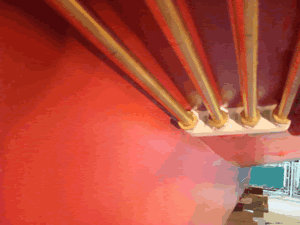

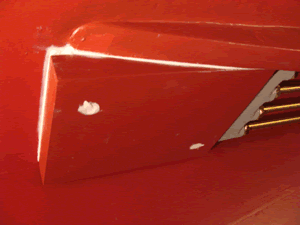

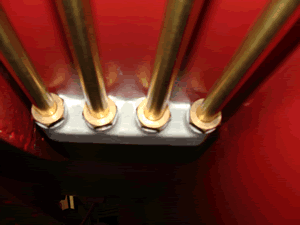

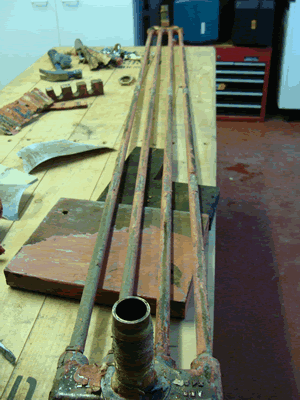

/ Both keelcoolers had to be refurbished as they
were leaking, unfortunately a number of gland nuts had broken
and the tubes could not be removed,it was decided to remove the
complete units including the manifolds and fairings,this allowed

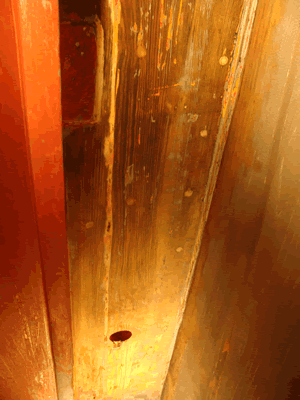

the hull behind the units to be accessed and this area was taken
back to the wood and repainted. Finding replacement parts for
the newage keelcoolers (tube / gland nuts / and seals) proved
impossible, and apart from the admiralty brass tube, the gland
nuts & seals had to be made. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Maintenance 2007 (January 2007 - May 2008) |
2007
/ 2008 maintenance continued in Leicester with repairs to the

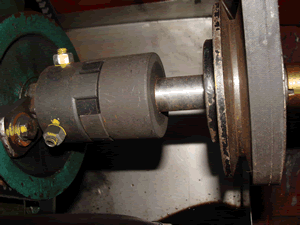

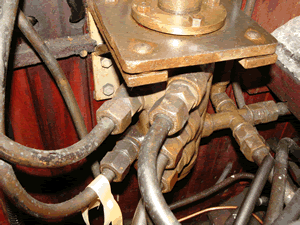

hydraulic pipe work and new drive coupling for the hydraulic pump

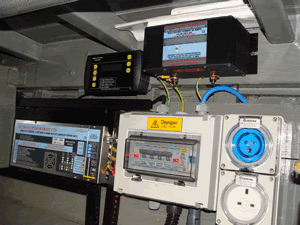

on the port engine, The 240V shore power installation was completely
replaced and the fresh water tank was removed and re furbished.
A winter cover was made that could be supported by an aluminium
beam; this beam has a kader track to accept the covers and is
fixed by using the existing cat davit and mast tabernacle. All
external paintwork completed, Baby Blake toilet re built. / Cooker
replaced as all burner taps leaked, 75% gas pipes replaced and
tested, gas alarm installed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
